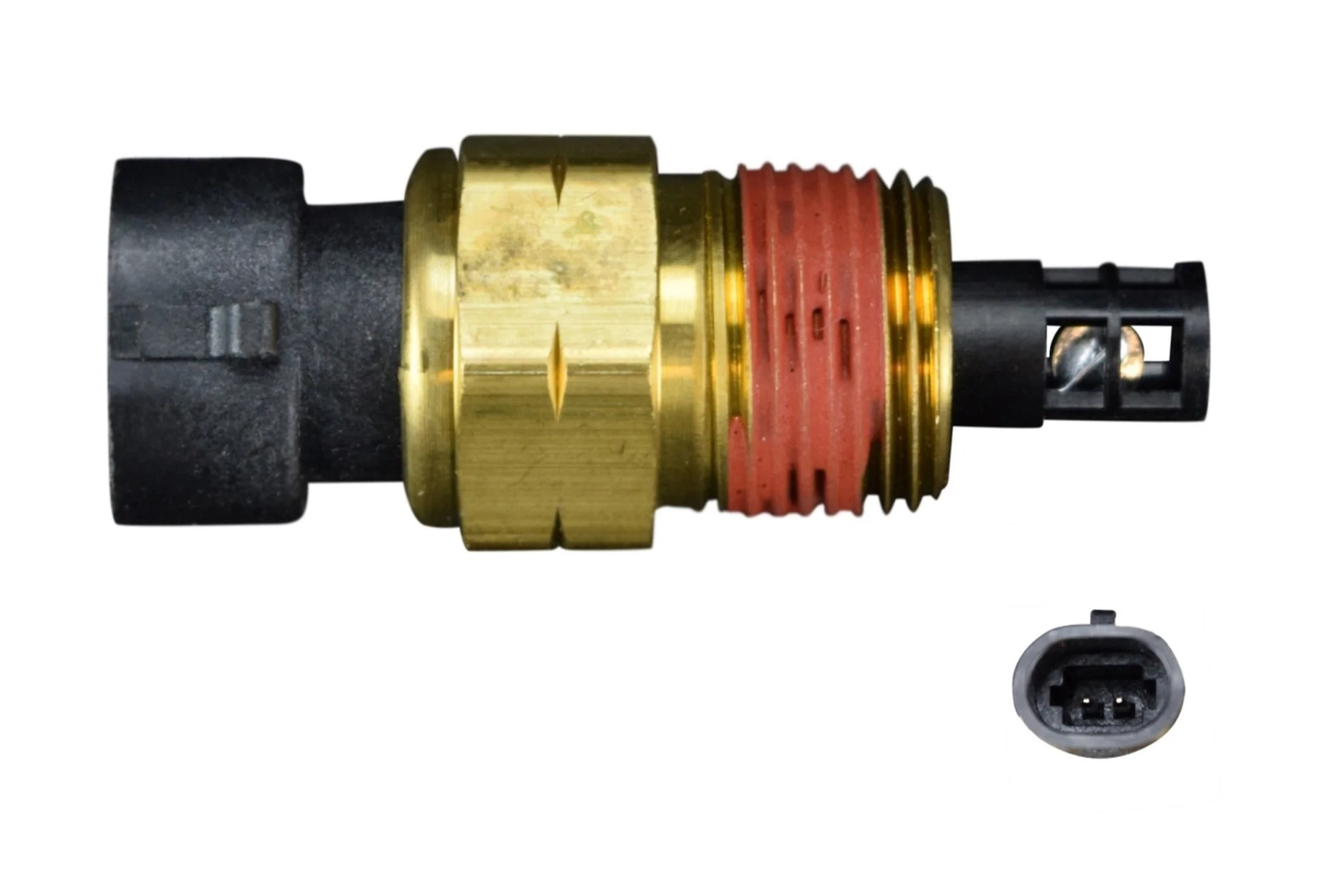

LS Intake Air Temperature Sensor IAT 3/8"npt Threaded Turbo LS1
Genuine Delphi - Intake Air Temperature Sensor
Works with any LS IAT sensor 2 wire connector
- If you have the 5 wire MAF/IAT plug ICT# WPMAF30, you will need to remove 2 wires for a new IAT connector. Use with ICT Billet wire pigtail SKU WPIAT30
- Includes: 1 intake temp sensor (3/8 NPT thread)
- Pigtail sold separately, SKU WPIAT30
************** 5 wire MAF sensor rewire how to. Use the tan and solid black wires to run the IAT senor. These are located on the PCM RED connector pin 25 for the Tan wire, then pin 57 for the black wire. (see photo for connector wiring)
Genuine Delphi - Intake Air Temperature Sensor
Works with any LS IAT sensor 2 wire connector
- If you have the 5 wire MAF/IAT plug ICT# WPMAF30, you will need to remove 2 wires for a new IAT connector. Use with ICT Billet wire pigtail SKU WPIAT30
- Includes: 1 intake temp sensor (3/8 NPT thread)
- Pigtail sold separately, SKU WPIAT30
************** 5 wire MAF sensor rewire how to. Use the tan and solid black wires to run the IAT senor. These are located on the PCM RED connector pin 25 for the Tan wire, then pin 57 for the black wire. (see photo for connector wiring)
$59.99
LS Intake Air Temperature Sensor IAT 3/8"npt Threaded Turbo LS1—
$59.99
Description
Genuine Delphi - Intake Air Temperature Sensor
Works with any LS IAT sensor 2 wire connector
- If you have the 5 wire MAF/IAT plug ICT# WPMAF30, you will need to remove 2 wires for a new IAT connector. Use with ICT Billet wire pigtail SKU WPIAT30
- Includes: 1 intake temp sensor (3/8 NPT thread)
- Pigtail sold separately, SKU WPIAT30
************** 5 wire MAF sensor rewire how to. Use the tan and solid black wires to run the IAT senor. These are located on the PCM RED connector pin 25 for the Tan wire, then pin 57 for the black wire. (see photo for connector wiring)
