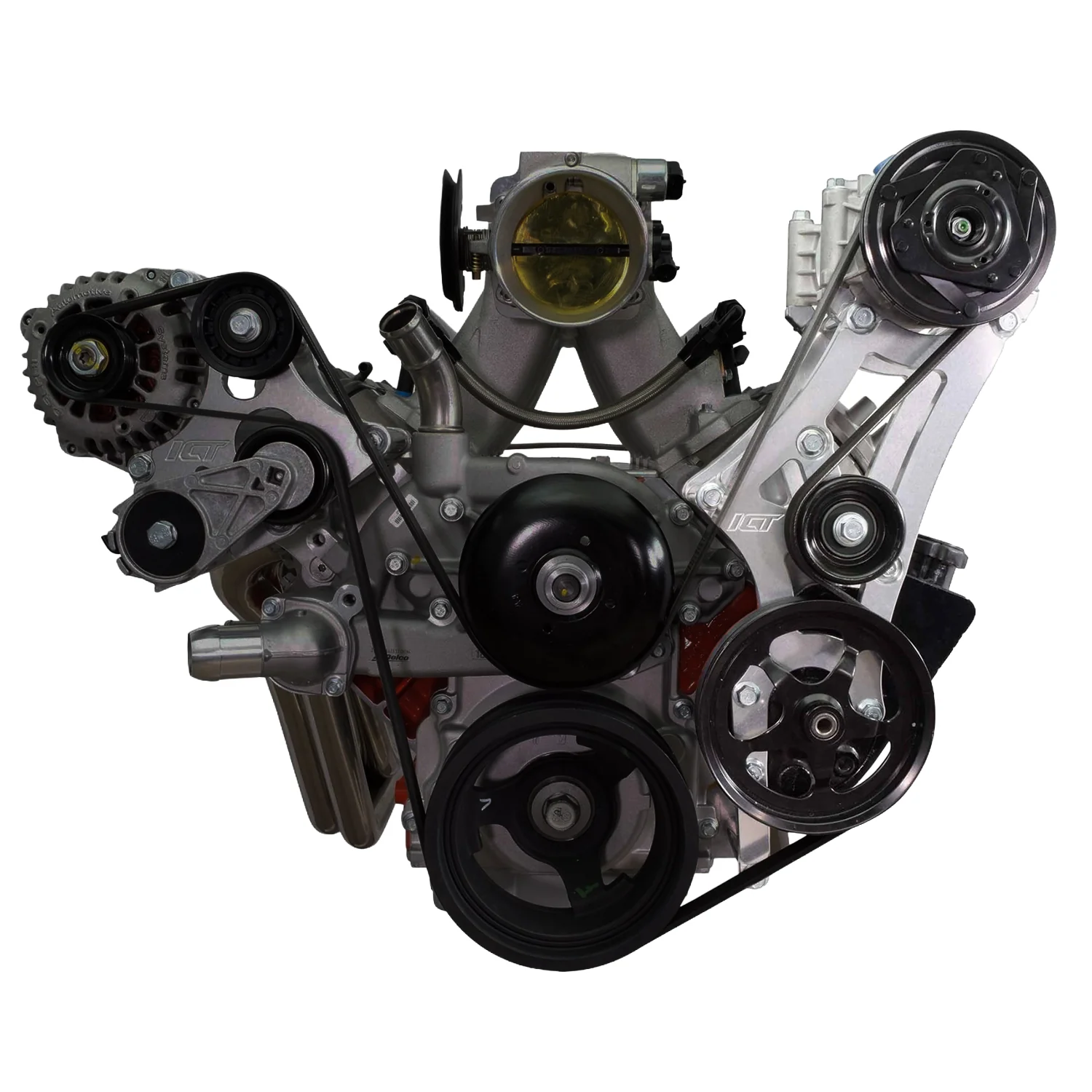

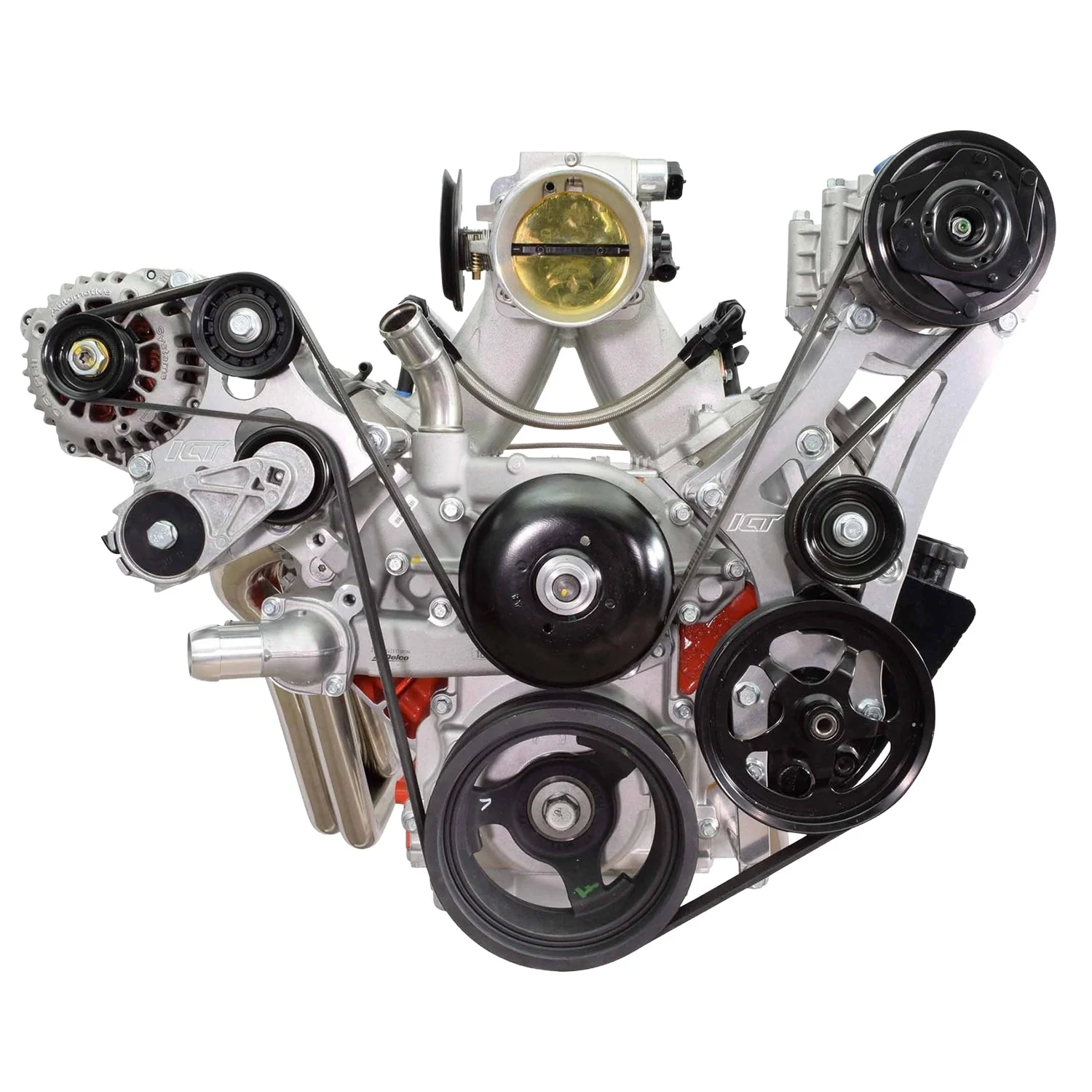

1996, 1997, 1998 Chevy Vortec Truck Air Conditioning Compressor Bracket for LS Swapped OBS Trucks with 96-98 HT6 Compressor

Designed specifically for an LS swapped Vortec 1996-1998 C1500 Trucks to retain the trucks OE A/C compressor and lines.

• This kit uses Truck/SUV (or LS3/L99 Camaro) crank pulley(ICT#BAL300)

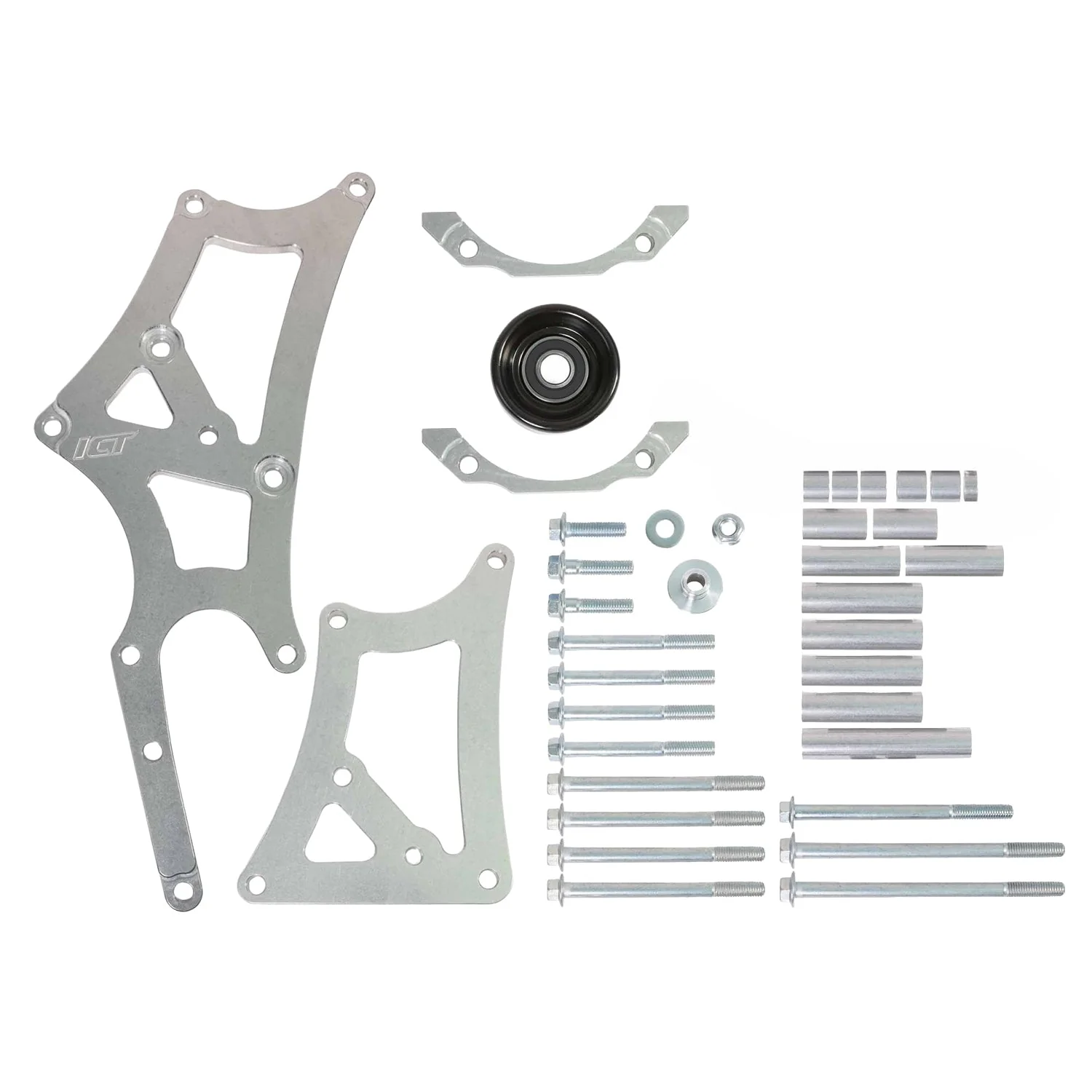

• Includes: bracket, idler pulley, and mounting hardware
• Compatible with 1996-1998 C1500 factory power steering pump and pulley (19319902 & 12605677) (Not compatible with EVO systems, see photo)
• Compatible with a 1996-1998 C1500 V8 Factory HT6 A/C Compressor (ICT # ACC505)
• Designed to be paired with a 551780-3 alternator kit - or many other passenger-side alternator bracket kits that have an integrated belt tensioner
• Compatible with 985K6 belt when used with 551780-3 bracket kit
• Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

Helpful Links & Guides

• Belt length chart
• Replacement bolt and spacer kit
• Instructions
