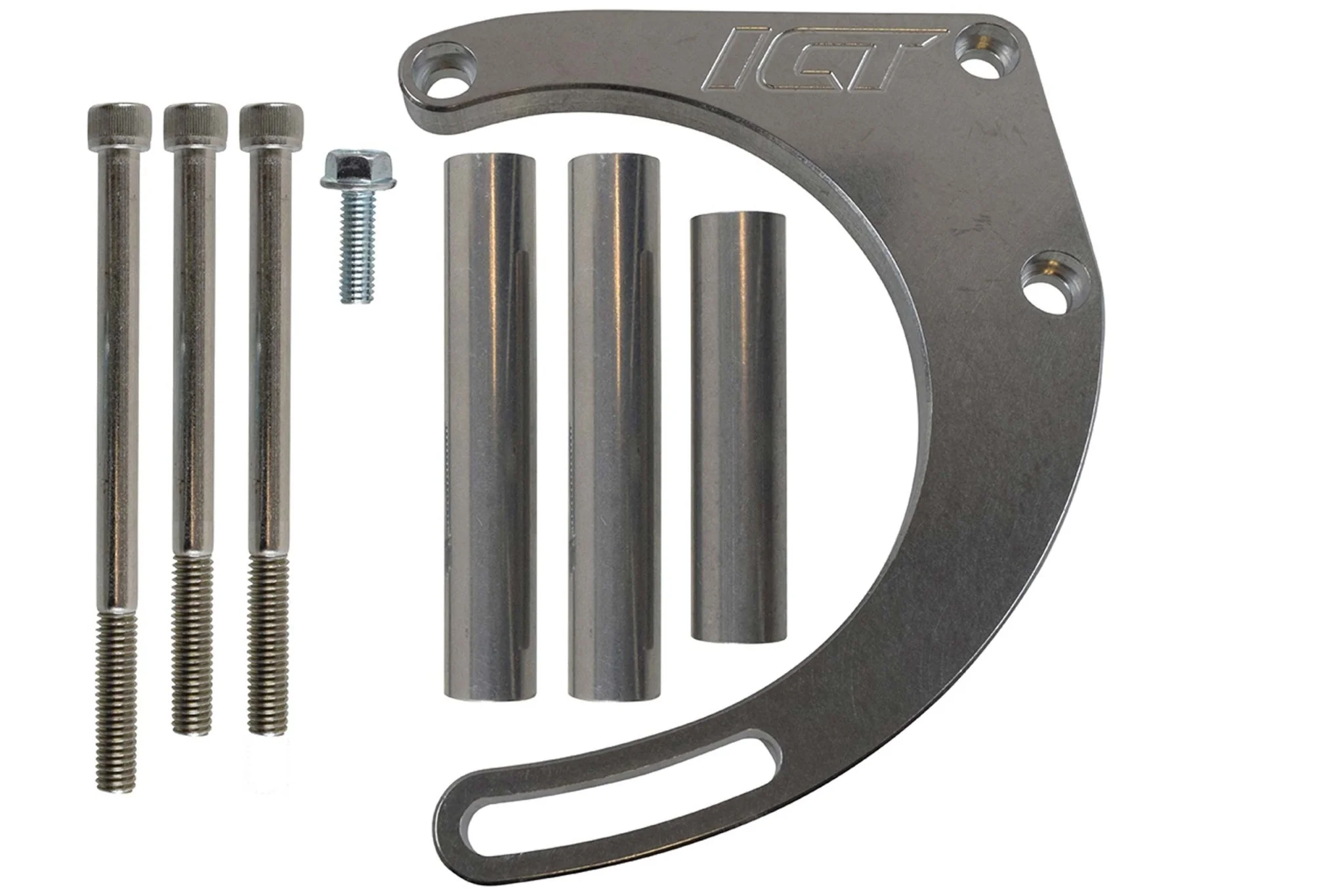

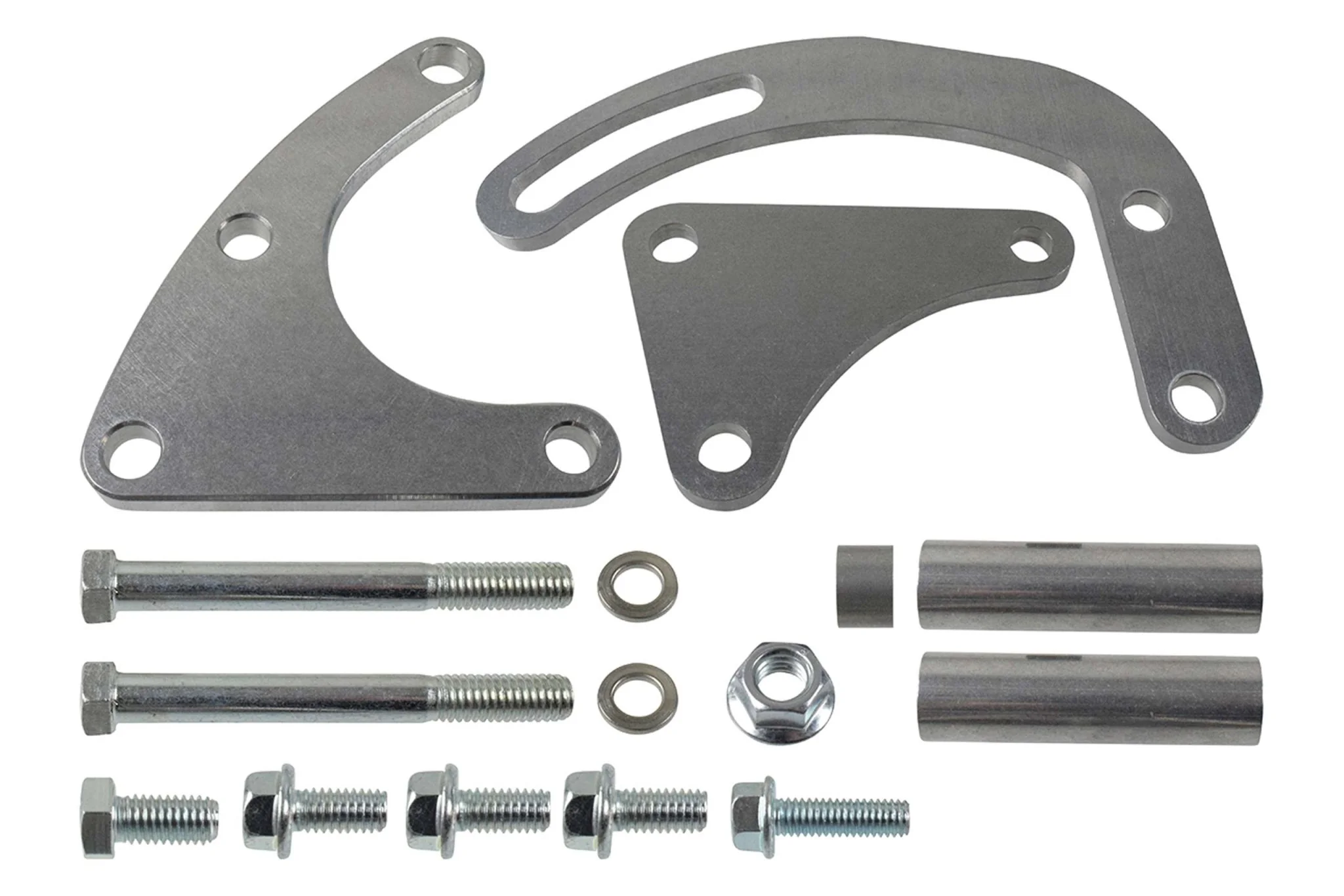

BBC Alternator & Power Steering Bracket Kit for Electric Water Pump ONLY

Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

• Does NOT include pulleys
• This kit will ONLY work with Long water pump, V-belt (1, 2, or 3 rib pulleys)
• Includes alternator and power steering bracket, instructions, and mounting hardware

Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts).  If the hole is larger then also purchase 7/16" bolt #551663-B0LT.

 Depending on thickness of water pump base, the bolt sleeves/spacers may need trimmed to fit.  Pictures are shown with electric water pump #E-5927-P.

Power Steering Pump (OE style or Lares 2134)

Bracket is only compatible with the power steering pump style shown in picture 3 with rear stud at bottom of the reservoir.

Pulleys (or similar OE style, V-Rib ONLY)

• Suggested Crank Pulley Part #14023148
• Suggested Power Steering Pulley Part #14023173

Belt Length

• Alternator uses 38.5" V-belt (with factory diameter pulleys)
• Power steering uses 39.5" V-belt (with factory diameter pulleys)

*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093
