BBC Alternator & Power Steering Bracket - Head & WP Mounted

454 BBC Alternator and Power Steering Pump Bracket Kit - Head and Water Pump Mounted

Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

  • Brackets mount to cylinder head and water pump
  • Does NOT include pulleys
  • This kit will ONLY work with LONG water pump, V-belt (1, 2, or 3 rib pulleys)

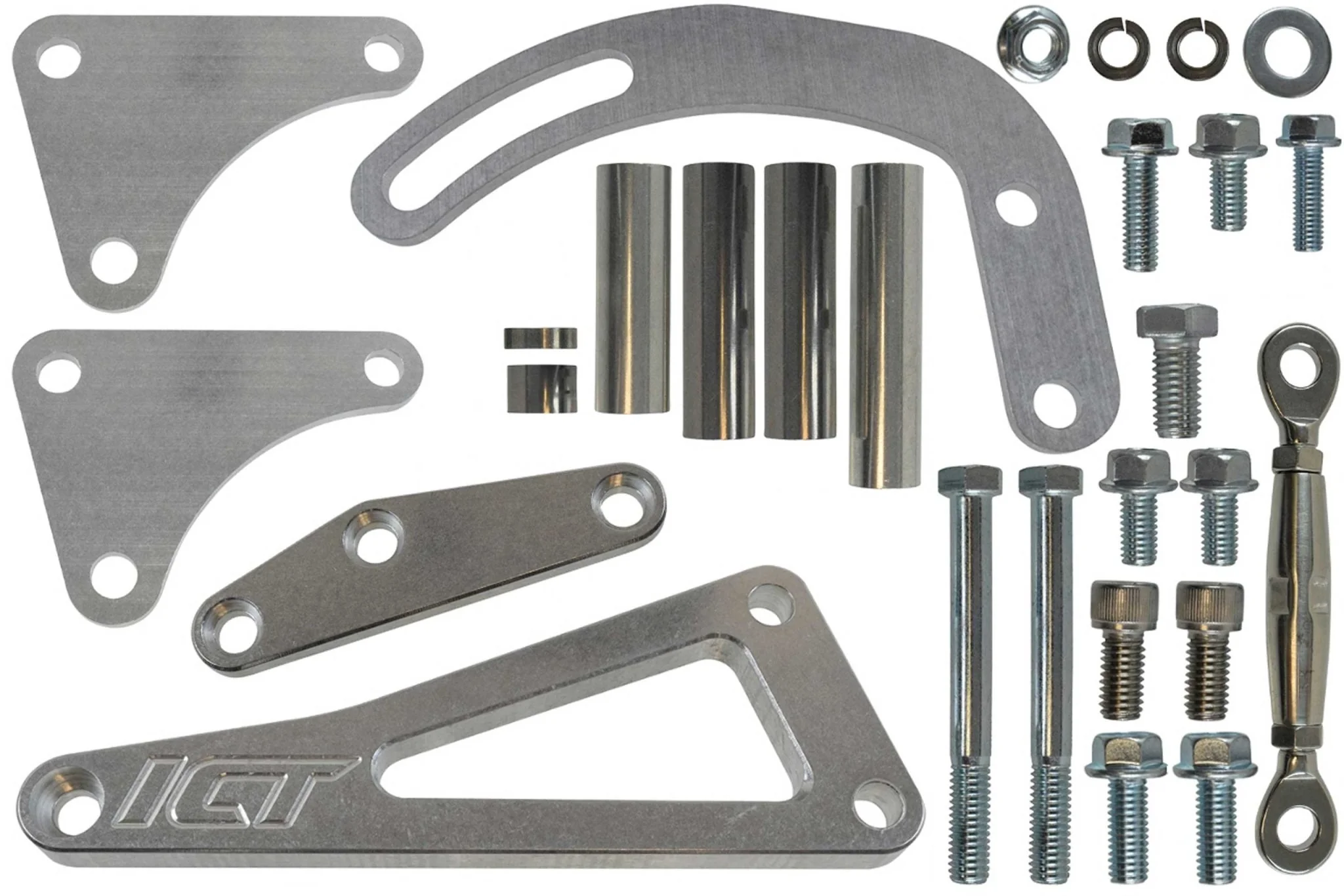

  • Includes: pump bracket, instructions, and mounting hardware

Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts).  If the hole is larger then also purchase 7/16" bolt #551663-B0LT.

Power Steering Pump (OE style or Lares 2134)

Bracket is only compatible with the power steering pump style shown in picture 3 with rear stud at bottom of the reservoir.

Pulleys (or similar OE style, V-Rib ONLY)

  • Suggested Crank Pulley #14023148
  • Suggested Power Steering Pulley #14023173
  • Suggested Water Pump DWP-442

Belt Length

  • Alternator uses 47" V-belt (with factory diameter pulleys)
  • Power steering uses 45" V-belt (with factory diameter pulleys)

*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093

454 BBC Alternator and Power Steering Pump Bracket Kit - Head and Water Pump Mounted

Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

  • Brackets mount to cylinder head and water pump
  • Does NOT include pulleys
  • This kit will ONLY work with LONG water pump, V-belt (1, 2, or 3 rib pulleys)
  • Includes: pump bracket, instructions, and mounting hardware

Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts).  If the hole is larger then also purchase 7/16" bolt #551663-B0LT.

Power Steering Pump (OE style or Lares 2134)

Bracket is only compatible with the power steering pump style shown in picture 3 with rear stud at bottom of the reservoir.

Pulleys (or similar OE style, V-Rib ONLY)

  • Suggested Crank Pulley #14023148
  • Suggested Power Steering Pulley #14023173
  • Suggested Water Pump DWP-442

Belt Length

  • Alternator uses 47" V-belt (with factory diameter pulleys)
  • Power steering uses 45" V-belt (with factory diameter pulleys)

*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093
